PRODUCTION TORTILLA PRESSES

Production tortilla presses

AM Manufacturing is the established leader in hot press technology, having designed the newest, state of the art equipment to companies ranging from small operators to the largest producers of tortillas in the world. Available press sizes range from 32″ X 32″ to 52″ X 52″. AM hot presses deliver a superior quality product while maintaining consistent high production rates. If you require a dependable machine to press anywhere from 100 to 3000 dozen per hour, an AM indexing press is for you.

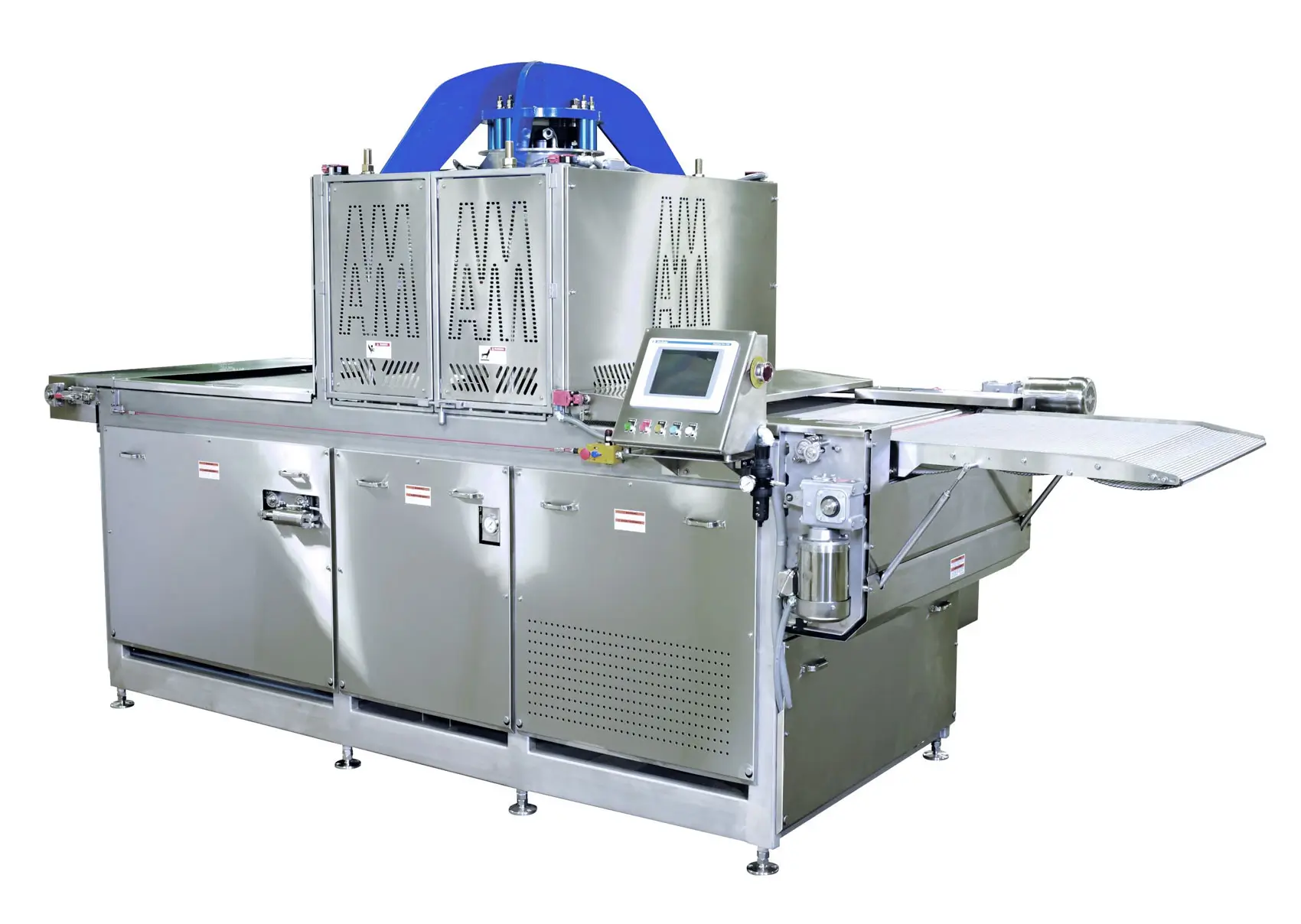

Tortilla pressing machine manufactured by AMMFG in Munster, IN
Tortilla-making equipment dashboard in a food factory

FEATURES

  • On-board hydraulic system
  • Adjustable pressing force
  • Adjustable dwell times
  • Adjustable platen travel from 0″ to 6″
  • Adjustable temperature on upper and lower platens (to 550F)
  • Adjustable guide system eliminates lateral platen movement
  • Fully automatic, variable speed, belt indexing
  • Open frame design allows for easy access for cleaning and maintenance
  • Two-speed, height adjustable stainless-steel discharge conveyor for smooth product transfer
  • Fully interlocked hinged guarding for optimum operator safety
  • Adjustable leveling legs provided to keep machine stable

AVAILABLE PRESS SIZES

  • 32″ x 32″
  • 32″ x 43″
  • 40″ x 40″
  • 48″ x 48″
  • 52″ x 52″
  • Special “double-headed” presses are available for applications with high production rates

ELECTRICAL REQUIREMENTS

  • Available in 208, 240 or 480 volts / three phase / 60 hertz
  • Overseas voltages / CE requirements are available
